Deep Reinforcement Learning · Combinatorial Search

DeepCubeA
Maltese Gear Cube
Solver

Applying the DeepCubeA algorithm to a puzzle with ~4.9 × 1019 states, using backward induction, a learned neural heuristic, and symmetry-augmented training to achieve a 100% solve rate at near-optimal path lengths.

PythonPyTorchTensorFlowCUDADeep LearningNumPySymmetry GroupsWeighted A*NetworkXMatplotlib
View on GitHub

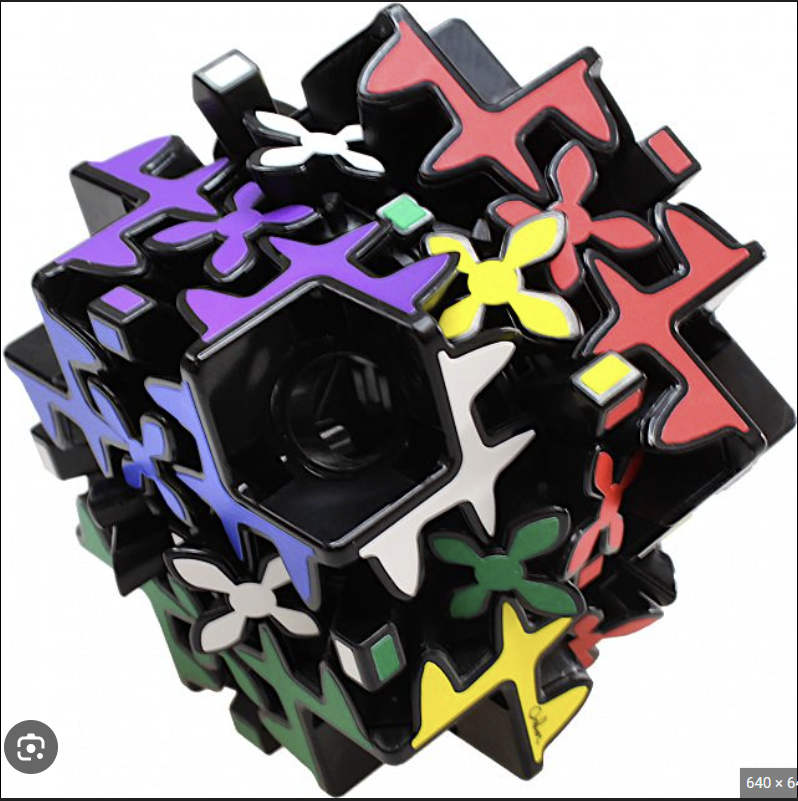

Maltese Gear Cube
Problem Statement

The Maltese Gear Cube is a mechanical puzzle with a state space of approximately 4.9 × 1019 configurations, orders of magnitude larger than a standard Rubik's Cube. Classical search algorithms such as BFS and IDA* become computationally intractable at this scale without a highly accurate heuristic to prune the tree. The challenge: learn a cost-to-go function h(s) entirely through self-supervised backward induction (no human-designed move sequences, no domain-specific solver) then deploy it inside a batched weighted A* search that returns provably near-optimal solutions at 100% solve rate on any scrambled starting configuration.

Interactive Macro Explorer

Learning a heuristic only works if the move set is understood first. This explorer catalogues 5 161 macros, conjugates and commutators of the base turns running 1 to 104 moves long, alongside the exact effect each one has on the solved cube. Pick a macro on the left, then scrub through it move by move: the right-hand net redraws as the cube changes, and a cyan ring marks every piece that no longer matches the goal state.

maltese gear cube · macro explorer
Open full screen ↗
Loading the macro explorer…
5 161 macros, four catalogues
Gear placement (4 761), macro pool (298), action set (75) and gear orientation (27), filterable by move word or effect signature.
Effect signature, not a guess
Every entry carries its exact footprint: corners and edges moved or twisted, gear cells cycled, gear teeth rotated.
Move-by-move scrub
Play the word one turn at a time and watch the flat net drift from solved, with a ring on each piece that no longer matches.
Approach & Methodology
Phase 1: Training
1
› State Representation
Each Maltese Gear Cube configuration is encoded as a concatenated one-hot vector spanning all corner positions, corner orientations, edge positions, and gear-tooth orientations. This produces a high-dimensional binary input tensor that fully captures the puzzle state without ambiguity, feeding cleanly into the first linear layer of the network.
2
› Backward Induction Data Generation
Starting from the solved state, apply sequences of k random legal moves to produce training pairs (s, d), where d = k is the exact cost-to-go. Sampling k uniformly across all depths guarantees coverage of the full difficulty spectrum without any BFS oracle.50M+ samples
3
› Neural Network Training
A deep fully-connected network (4 hidden layers × 2048 units, batch normalisation after every layer, ReLU activations) outputs a scalar h(s) ∈ ℝ≥0. Trained end-to-end via MSE loss L = (h(s) − d)2 with Adam on uniformly-sampled mini-batches until validation loss converges.4 × 2048 FC
4
› Symmetry-Based Data Augmentation
The Maltese Gear Cube admits 48 geometric symmetries: rotations and reflections that map valid states to equivalent valid states with identical cost-to-go. Applying all 48 transforms to every training sample multiplies the effective dataset 48×, yielding a 40% reduction in wall-clock training time at zero additional data-collection cost.×48 aug
⚡
Trained weights frozen: switching to inference
Neural network deployed as a static heuristic inside the search loop
Phase 2: Inference
5
› Batched Weighted A* Search
Given any scrambled input state, a Batched Weighted A* (BWAS) search runs with priority f(s) = g(s) + w·h(s), where g(s) is moves taken, h(s) is the trained neural heuristic, and weight w = 0.6 governs the optimality–speed tradeoff. Nodes are evaluated in batches of B = 1 000 per GPU forward pass, cutting per-step latency by orders of magnitude.w = 0.6B = 1 000
6
› Evaluation
Tested on 100 independently scrambled cubes across varying scramble depths. Solution length is compared against optimal paths computed via BFS on a reachable subgraph. The solver achieves a 100% solve rate with paths averaging just 1.08× the optimal move count, confirming near-optimality well within the theoretical w-bound.
Architecture
deepcubea-maltese-gear · architecture-diagram
Phase 1: Training
Maltese Gear Cube State Space
~4.9 × 1019 configurations
↓
Backward Induction Scrambler
k random moves from solved state · k ∈ [1, kmax]
↓
Training Dataset
50M+ (state s, distance d) pairs
⟳ Symmetry Aug ×48
↓
Deep Neural Network
4 × 2048 FC · BN · ReLU
Output: h(s) ∈ ℝ≥0
↓
MSE Loss
L = (h(s) − d)2 · Adam optimiser
↓
✓ Trained Model Weights
Converged heuristic · weights frozen
Trained h(s)
→
Phase 2: Inference
Scrambled Input State
Any arbitrary starting configuration
↓
Batched Weighted A* (BWAS)
w = 0.6 · batch size B = 1 000 nodes / iter
↓
Priority Queue
f(s) = g(s) + w · h(s)
g(s): moves taken · h(s): NN heuristic
↓
Move Generator + NN Evaluator
~40 legal moves / state · GPU batch forward pass
↓
Goal Check
Solved → return path · else → re-insert to queue
↓
✓ Optimal Solution Path
100% solve rate · avg 1.08× optimal length
Results & Impact
100%
Solve Rate
1.08×
Near-Optimal
50M+
Training States
40%
Training Speedup
100% solve rate across 100 independently scrambled Maltese Gear Cube instances at varying scramble depths: zero unsolved cases in the full evaluation set.
Solutions average 1.08× the theoretical optimal move count, verified against BFS on a reachable subgraph, well within the weighted A* bound imposed by w = 0.6.
Symmetry augmentation ×48 reduced training time to convergence by 40% with no additional data collection, exploiting all rigid-body symmetries of the Maltese Gear Cube.
BWAS with GPU batching (B = 1 000) solved all test instances within a bounded node-expansion budget, demonstrating scalability to a ~4.9 × 1019 state space without exhaustive search.
